PCBA

Our company, XINGHONGTAI has two production lines for PCBA sample production and ten production lines for PCBA batch production spanning new energy, medical, communication, industrial control, drone and military industries. These customized PCBA boards were produced and exported to our customers spanning diverse industries of medical, automobile, industrial control, power, new energy, communication, test chip function and drone sectors, etc.

Chip Test PCBA

PCBA for chip testing applications, high-precision test board assembly

Communication Boards

PCBA for communication equipment, high-speed signal processing

PCBA Board 1

Customized PCBA assembly for industrial applications

PCBA Board 2

Customized PCBA assembly for new energy applications

PCBA Board 3

Customized PCBA assembly for medical applications

Test PCBA

Functional test PCBA for quality verification systems

FACTORY

PCBA Production Capability

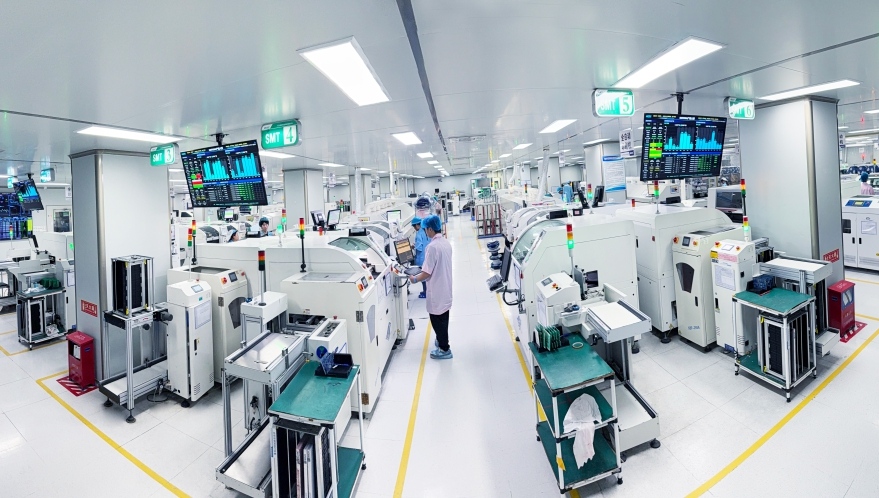

Our PCBA factory is equipped with high-placement-accuracy SMT lines, programmable depaneling equipment, and complete test capability to support both prototyping and volume production.

Capability

Equipment / Spec

SMT Equipment

Type of Hitachi F8 & Panasonic NPM, total 28 sets SMT equipment

Standard Production Line

10 lines per shift

Monthly Production Capacity

600 million solder joints

Chip Surface Mounted Precision

±0.03mm

PCB Surface Mounted Size

480mm × 510mm
